UGV

In cooperation with ASAX Innovation, we can provide a vehicle solution that enables the evacuation of wounded soldiers directly from the battlefield to our mobile field hospital.

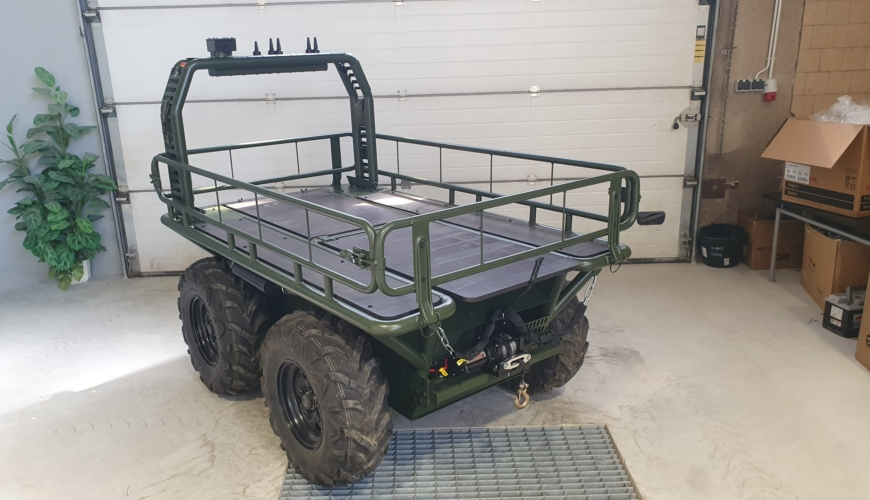

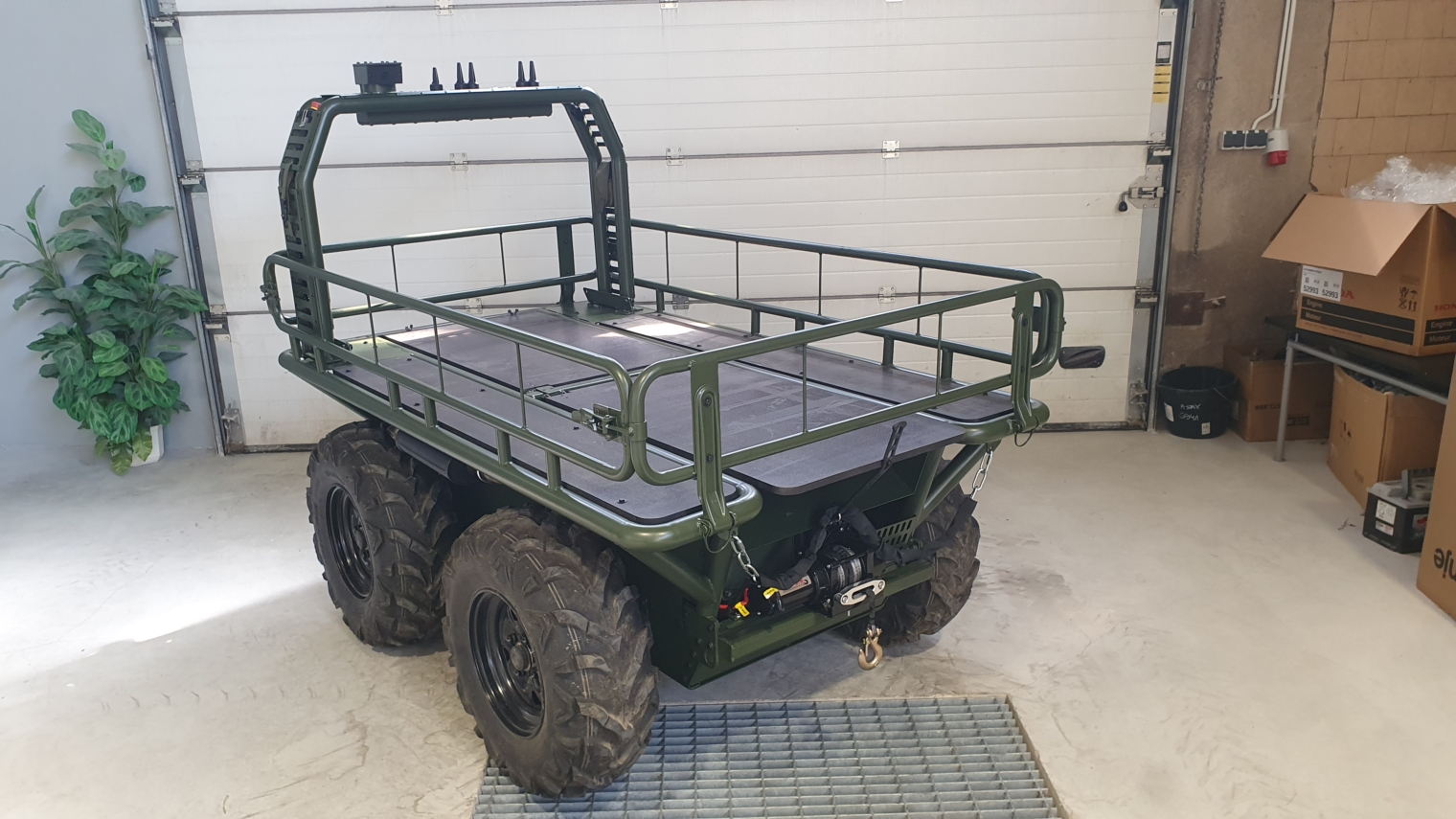

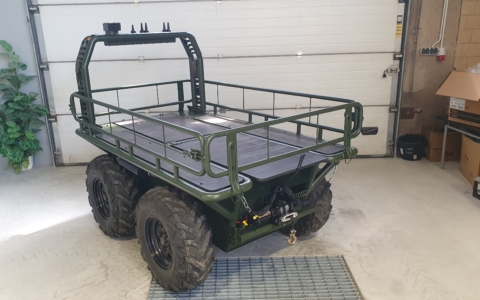

Newest model_ASAX UGV

Description

Revolutionary Technology for Safe Transportation of Injured Soldiers

Our unmanned ground vehicles utilize advanced technology to ensure the safe transportation of injured soldiers from the front line.

One-Handler is a highly maneuverable ground vehicle designed to transport injured soldiers from the front line to safety. It features dual controls, a compact size, and has been developed in cooperation with actual combat units to meet their specific needs.

Evacuation is often a manual labor
Minimize the physical strain of carrying a casualty on a stretcher by providing a motorized solution closer to the front line.

Flexible command system
The majority of war injuries are caused by antipersonnel fragments from munitions such as mortars and bomblets.
Most injured soldiers remain conscious and can still perform minimal actions, including controlling the drone with one hand if necessary.

Medical personnel is in direct danger
Controlling the UGV remotely allows medical personnel to keep a safe distance.

EXTENDABLE BY DEFAULT

ASAX H-2 platform comes with numerous built-in features while allowing to add spicific extensions required by the fighting unit.

  • 12V Power Outlets
  • Manual Controls
  • Encrypted Video
  • Tow Hook
  • Winch
  • Night Vision
  • Remote Operation
  • Extendable Mast
  • 360° Camera
  • Dual Band

Specification

Overall dimensions2000 x 1250 x 1650 mm
Cargo platform height800 mm
Net weight 500 kg
Payload 300 kg
Speed20 km/h
Range100 km
Radio range3.5 km (LOS)
Day and night visibilityYes
Trailer loading and unloading time2 -5 min
Ground control stationWith 4.5m communication mast
